A field for uploading images, supporting various image formats. Useful for product images, user avatars, or any visual content.

Screenshots

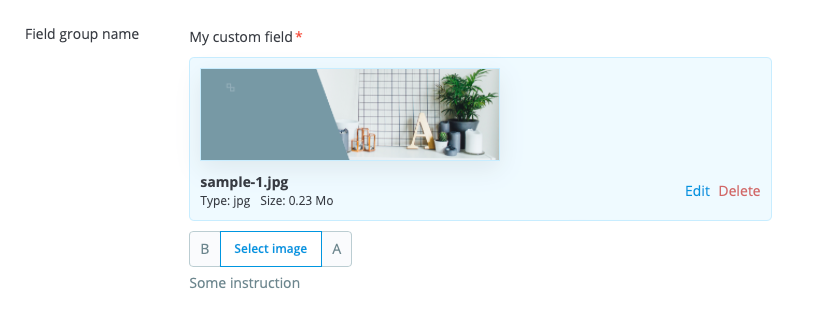

Field render in form:

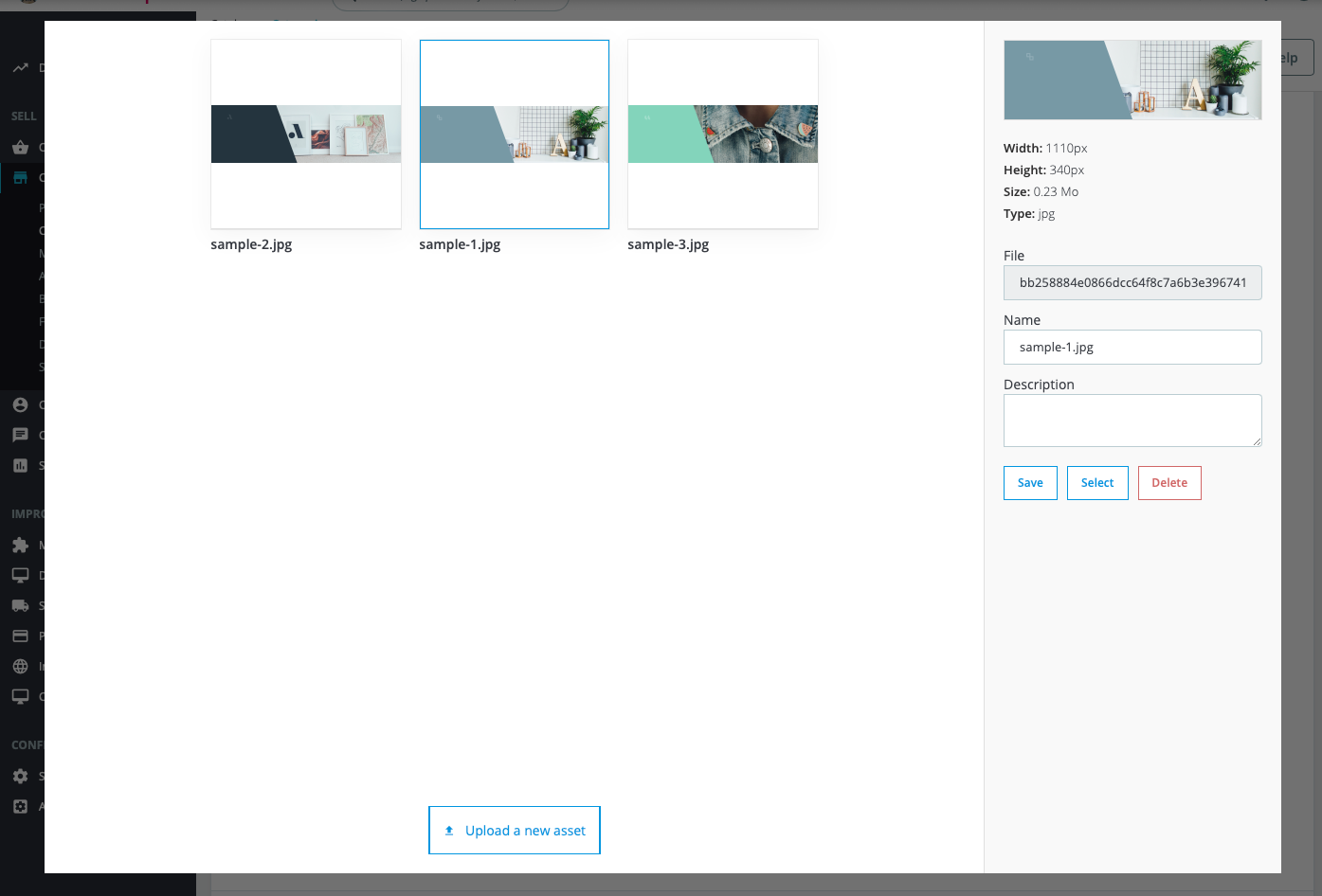

Field modal render in form:

Field render in field group:

Configuration

• Settings:

  • Name: The label for the field.
  • Slug: The unique technical identifier.
  • Translatable: Determines if the field content can be translated into multiple languages.

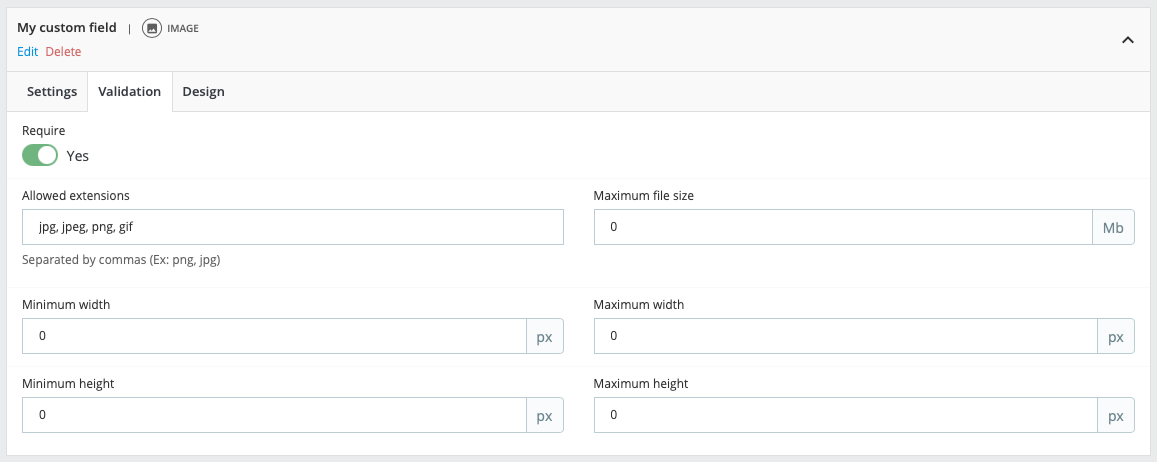

• Validation:

  • Require: Determines if the field must be filled out.
  • Allowed extensions: Specifies the allowed image file types (e.g., jpg, png, gif).
  • Min width: The minimum width of the uploaded image.
  • Max width: The maximum width of the uploaded image.
  • Min height: The minimum height of the uploaded image.
  • Max height: The maximum height of the uploaded image.
  • Max file size: The maximum file size allowed for the uploaded image.

• Design:

  • Instructions: Text displayed alongside the field providing details about the data needed.
  • Width: The width of the field in the form.
  • Classes: Custom CSS classes for styling the field.
  • ID: Custom ID attribute for the field.
  • Text before: Additional text displayed before the field.
  • Text after: Additional text displayed after the field.
  • Presentation format: Predefined maximum sizes for image previews (150x150, 300x300, 600x600, 1200x1200px).

Return format

• Type: array or null
• Value:

[
  'id'          => 1,
  'name'        => 'Image name',
  'file_name'   => 'image.png',
  'url'         => 'path/to/the/image.png',
  'description' => 'Image description',
]

Usage

/some-template.tpl

{* Object or Entity and Id *}
{assign var="data" value=$modules.customfieldgroups.data->get($product)}
{assign var="data" value=$modules.customfieldgroups.data->get('product', $product.id)}

{if $data.field_group_slug.field_slug}
  <img src="{$data.field_group_slug.field_slug.url}" alt="{$data.field_group_slug.field_slug.name}">
{/if}

/SomeClass.php

function someMethod()
{
    $dataRetriever = DataRetrieverFacade::getInstance();

    $data = $dataRetriever->get($object);               // Object
    $data = $dataRetriever->get('product', $idProduct); // Entity and id

    $imageDetails = $data['field_group_slug']['field_slug'];
}
